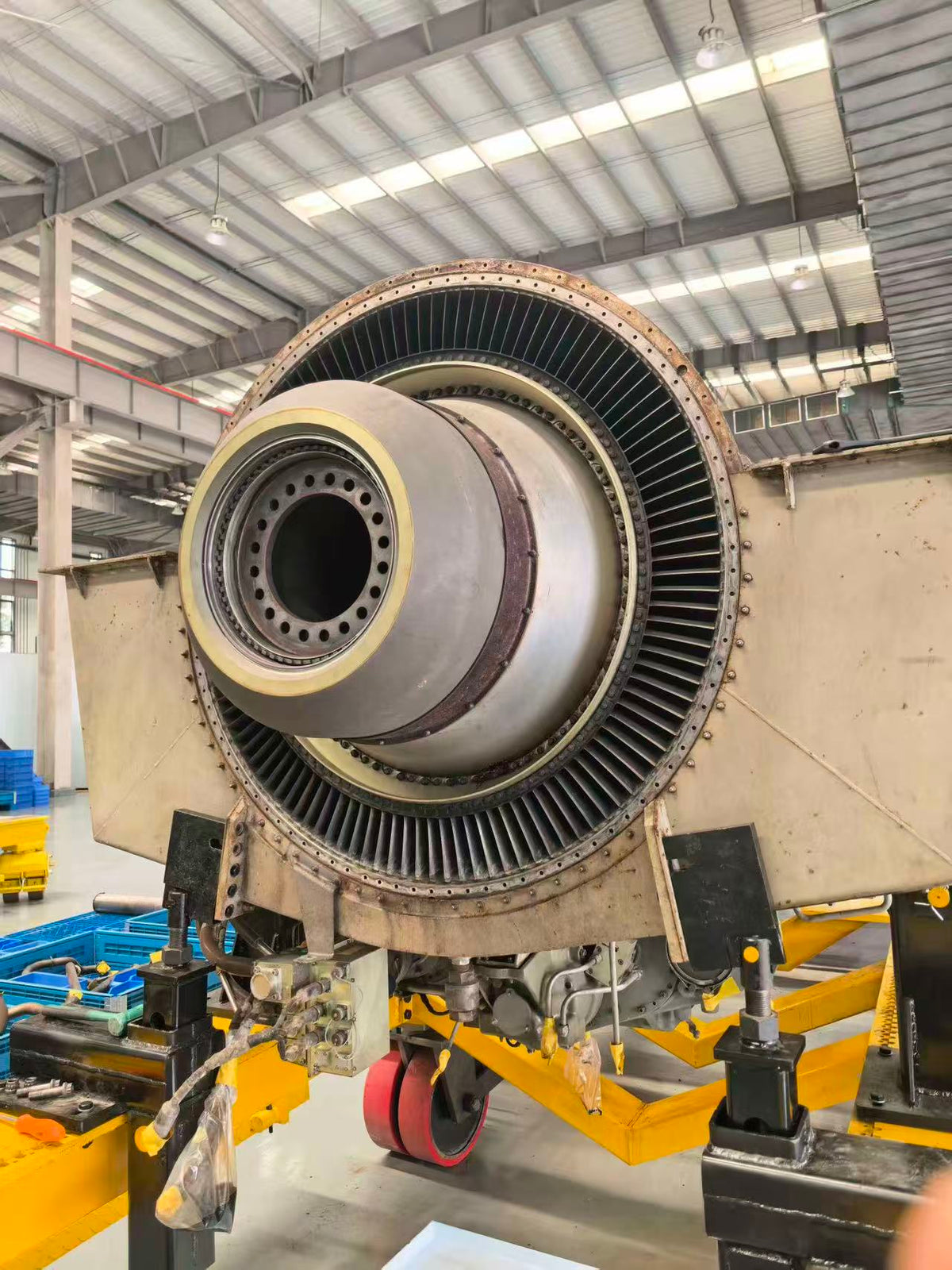

Gas‑turbine Generator Set Aero‑derivative Gas‑turbine Generator LM6000 GE

Dual-spool, two-shaft configuration:

• 5-stage Low-Pressure Compressor (LPC)

• 14-stage High-Pressure Compressor (HPC)

• Annular combustion chamber

• 2-stage High-Pressure Turbine (HPT)

• 5-stage Low-Pressure Power Turbine (LPT)

• Maximum net efficiency of approx. 41.3% (Simple cycle, LHV)

• Power turbine speed: 3600 rpm (60Hz grid) / 3850 rpm

• Exhaust flow of approx. 130–140 kg/s, exhaust temperature of approx. 450–495°C. Waste heat recovery for combined cycle applications can boost efficiency to 54%+, and it is also suitable for Combined Heat and Power (CHP).

• Startup advantages: 5-minute rapid start, fast ramp-up rate; highly suitable for peak shaving and emergency backup power for AIDC (AI Data Center) facilities.

• Reliability > 99%, availability > 98%

• Primarily fueled by natural gas, but diesel and dual-fuel versions are also supported.
